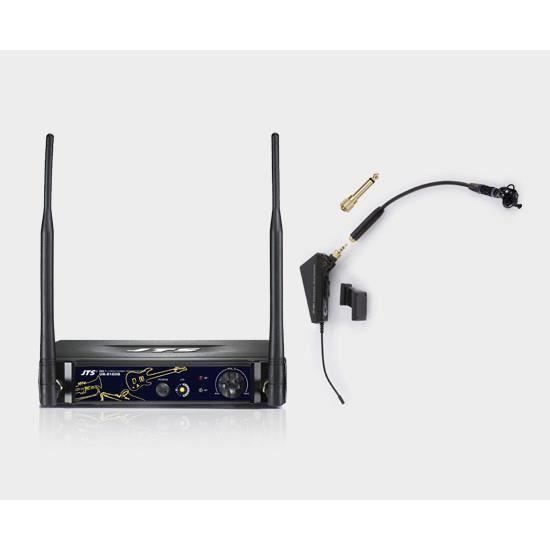

JTS UR-816DB / UT-16GT

Microfon Wireless Pentru Instrument JTS UR-816DB / UT-16GT

UR-816DB

• Frequency Preparation: PLL Synthesized Control
• Carrier Frequency Range: 518~542 MHz
• S/N ratio: > 105dB
• T.H.D.: <0.6%@1KHz
• Display: LED
• Display Contents: Antenna A/B, RF/AF Status
• Controls: Power On/Off, Channel Selecting, Audio Level
• Audio Output Level: -12dB
• AF Output Impedance: 600Ω
• Squelch: Pilot Tone, Noise and Mute
• Operation Voltage: 12-18 VDC, 200mA
• Output Connector: 1 Balanced XLR socket
•                               1 Unbalanced Ø6.3mm phone jack
• Dimension:  210mm (W) x 40mm (H) x 181mm (D)

UT-16GT

• Frequency Preparation: PLL Synthesized Control
• Carrier Frequency Range: 518~542 MHz
• RF Outputs: Maximum 10mW
• Stability: ±10KHz
• Frequency Deviation: ±48KHz
• LED Display: Power On/Off, Low battery
• Controls: Power On/Off, AF Level, Channel Selecting, Mute
• Spurious Emissions: <-50 dBC
• Audio Frequency Response:  40~18,000 Hz
• Battery: LR03, AAA 1.5V
