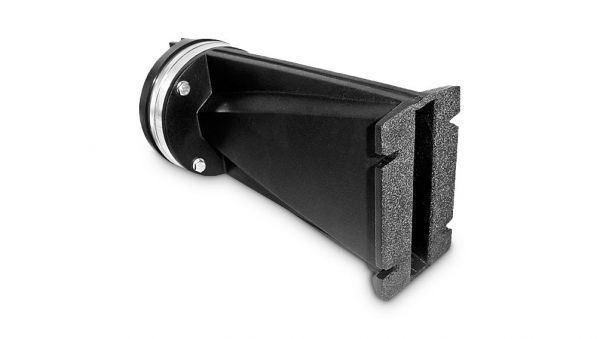

Beyma WL-5 WAVE GUIDE

Name: Beyma WL-5 WAVE GUIDE
Brand: Beyma
SKU: Beyma WL-5 WAVE GUIDE
Price: 6790 MDL
Availability: InStock

6.790,00 MDL

în stoc

Beyma WL-5 WAVE GUIDE

Throat diameter 36 mm 1.4 in

Flange height 125 mm 5 in

Nominal impedance 8 Ohm

Minimum impedance 7.2 ohm @ 3 kHz

Re 5.5 ohm

Power capacity 50 W AES above 0.8 kHz

Program power 100 W above 0.8 kHz

Sensitivity 108 dB 1 W @ 1 m

Frequency range 600-20000 Hz

Recom. crossover frequency 800 Hz or higher (12 dB/oct. min slope)

Voice coil diameter 72.4 mm 2.85 in

Flux density 2 T

BL factor 11 N /A

Diaphragm material Titanium dome with polyester surround

Beyma WL-5 WAVE GUIDE

Brand	Beyma
Tipul magnet	Ferită
